misp-reporting

MISP reporting

MISP reporting lets you explore the threat information stored in your MISP instance. It provides an overview of

the trend in the volume of events and attributes
the distribution of attribute types
recent activity by key organisations
threat level and TLP classification of events
targeted geographies and sectors
TTPs used by threat actors
vulnerabilities and weaknesses referenced in threat events

MISP reporting queries your instance, summarises the data, and outputs HTML reports together with a JSON statistics file. The generated graphs can also be embedded in other reporting tools.

Setup

MISP reporting is written in Python and requires a MISP API key.

Because the web server must read and write the files, ownership must be set to the web‑server user. On Ubuntu this user is www-data; on Red Hat it is apache. Run the following commands as the appropriate user (replace www-data with apache on Red Hat).

Step 1: Create the reporting directory and clone the repository

Custom MISP scripts are best placed in a dedicated directory such as /var/www/MISP/misp-custom/. Create it if necessary and clone the project.

sudo -u www-data mkdir /var/www/MISP/misp-custom/
sudo -u www-data git clone https://github.com/cudeso/misp-reporting.git
cd misp-reporting

Step 2: Set up a Python virtual environment and install dependencies

To keep system packages untouched, create a dedicated virtual environment named venv. If virtualenv is unavailable you may use python3 -m venv venv.

sudo -u www-data virtualenv venv
sudo -u www-data venv/bin/pip install -r requirements.txt

Step 3: Configure the application

Copy the default configuration and edit it to suit your environment.

sudo -u www-data cp config.py.default config.py

At a minimum you must set

misp_url – the URL of your MISP instance
misp_key – an API key (ideally for an account with the admin role)
output_dir – where reports will be written
install_dir – where MISP reporting is installed

Step 4: Create the output directories

Reports are written to output_dir, usually /var/www/MISP/app/webroot/misp-reporting. The directory must also contain a copy of the assets folder, which holds the logos of key MISP organisations.

sudo -u www-data mkdir /var/www/MISP/app/webroot/misp-reporting/
sudo -u www-data cp -r /var/www/MISP/misp-custom/misp-reporting/assets /var/www/MISP/app/webroot/misp-reporting/
chown -R www-data:www-data /var/www/MISP/app/webroot/misp-reporting/

Step 5: Add your organisation’s logo

Copy your logo (and those of other key organisations) into the assets directory:

sudo -u www-data cp logo.png /var/www/MISP/app/webroot/misp-reporting/assets/

Step 6: Run the reporting script

Generate the reports:

sudo -u www-data /var/www/MISP/misp-custom/misp-reporting/venv/bin/python /var/www/MISP/misp-custom/misp-reporting/reporting.py

The reports are now available at https://<MISP>/misp-reporting/.

Cronjob

To run the report daily, add a cronjob for the web‑server user:

crontab -u www-data -e

Insert the following line (adjust the path if required):

00 6 * * * cd /var/www/MISP/misp-custom/misp-reporting/ ; /var/www/MISP/misp-custom/misp-reporting/venv/bin/python /var/www/MISP/misp-custom/misp-reporting/reporting.py

Reports

Three report types are planned. The summary and curation overview are complete; infrastructure monitoring is in progress.

Summary report

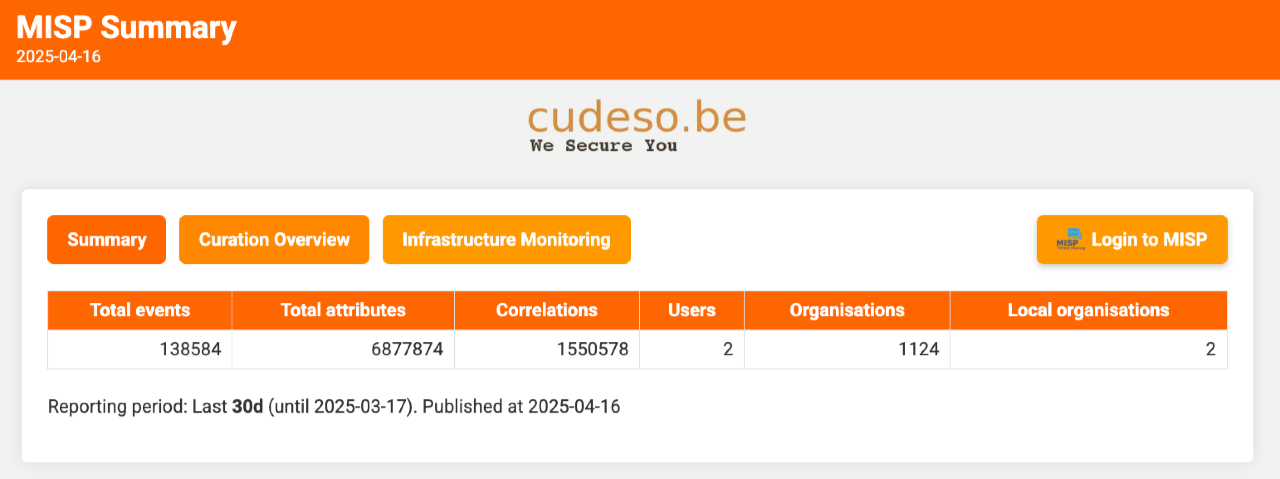

The summary report presents high‑level statistics for your MISP server. The header also links to the other reports and provides a button to log in to MISP.

docs/misp-reporting-summary-1.png

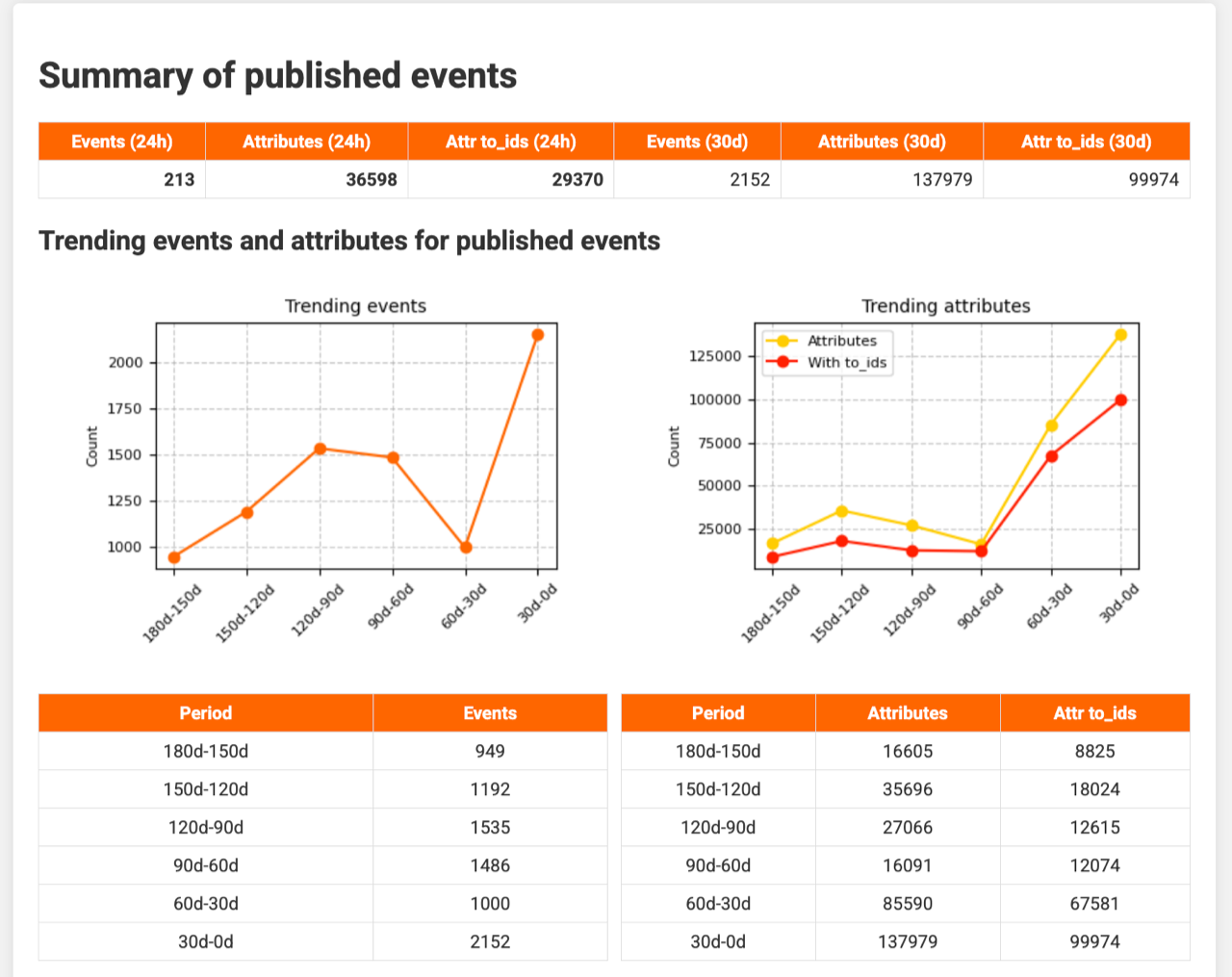

It begins with a summary of published events. Based on reporting_period, reporting_trending_count, and reporting_filter, you see the trend in published events and their attributes.

docs/misp-reporting-summary-2.png

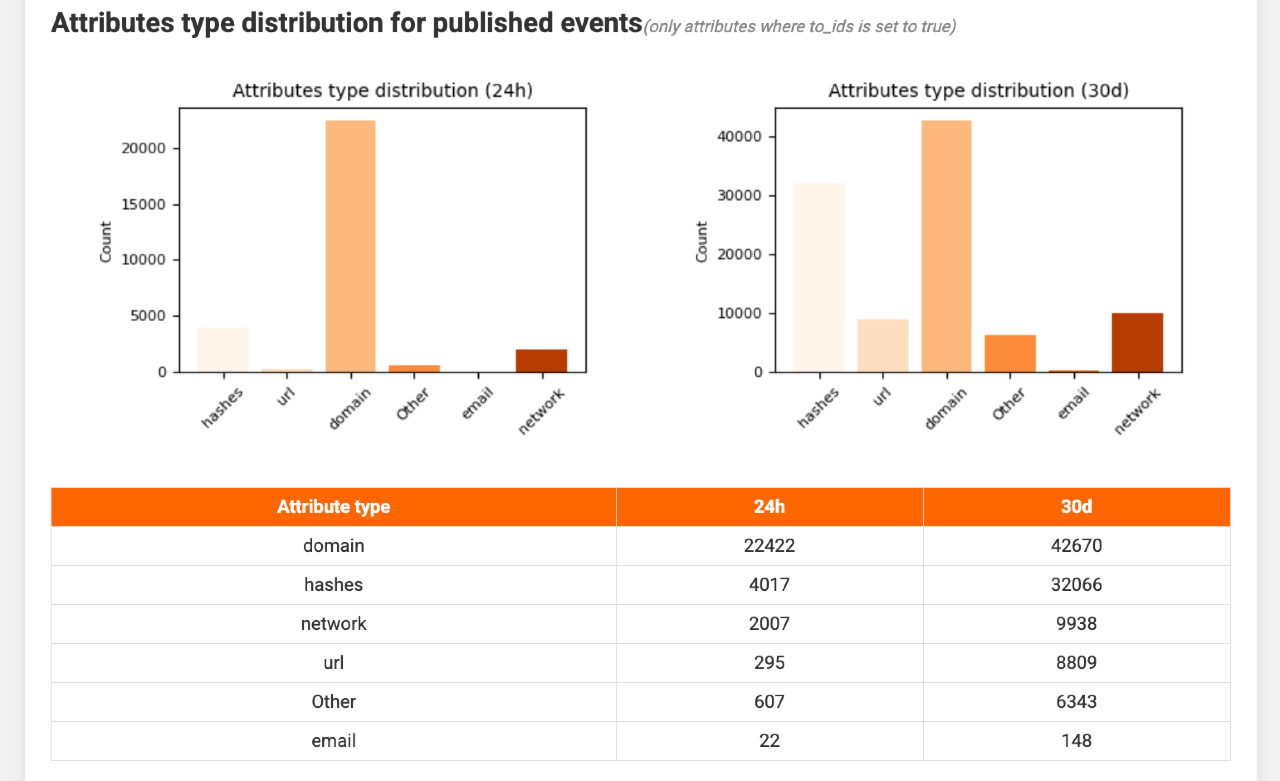

The next section examines attribute details, showing which attribute types appeared during the last 24 hours and other periods. The breakdown is controlled by attribute_summary.

docs/misp-reporting-summary-3.png

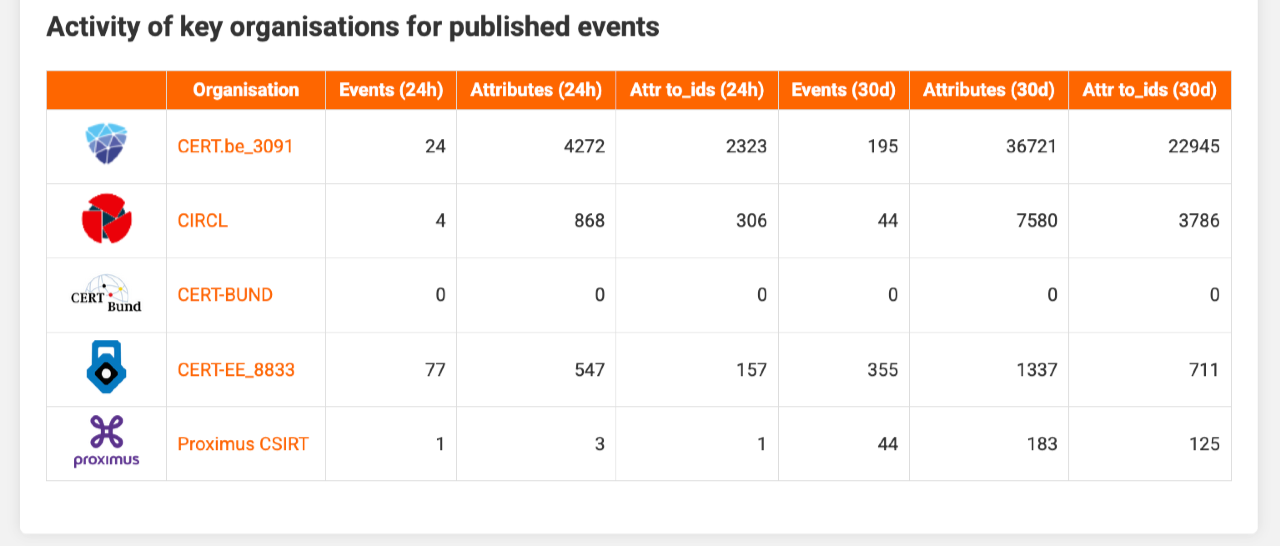

A further section highlights key organisations (defined in key_organisations), listing event and attribute counts for the past 24 hours and the current reporting period. Direct links open the corresponding events in MISP.

docs/misp-reporting-summary-4.png

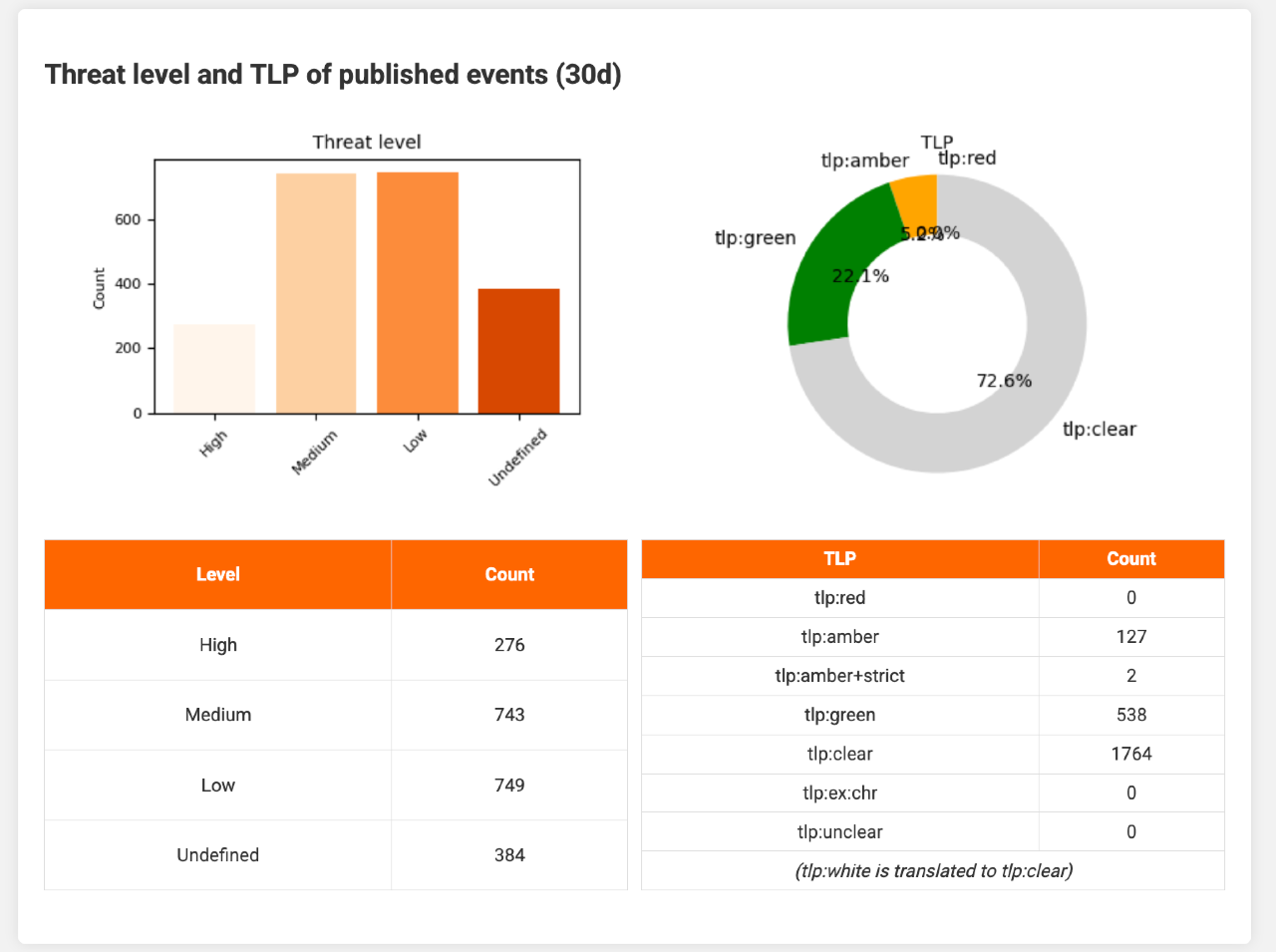

Threat level and Traffic Light Protocol (TLP) designations follow, enabling you to spot spikes in high‑severity or specific TLP‑tagged events at a glance.

docs/misp-reporting-summary-5.png

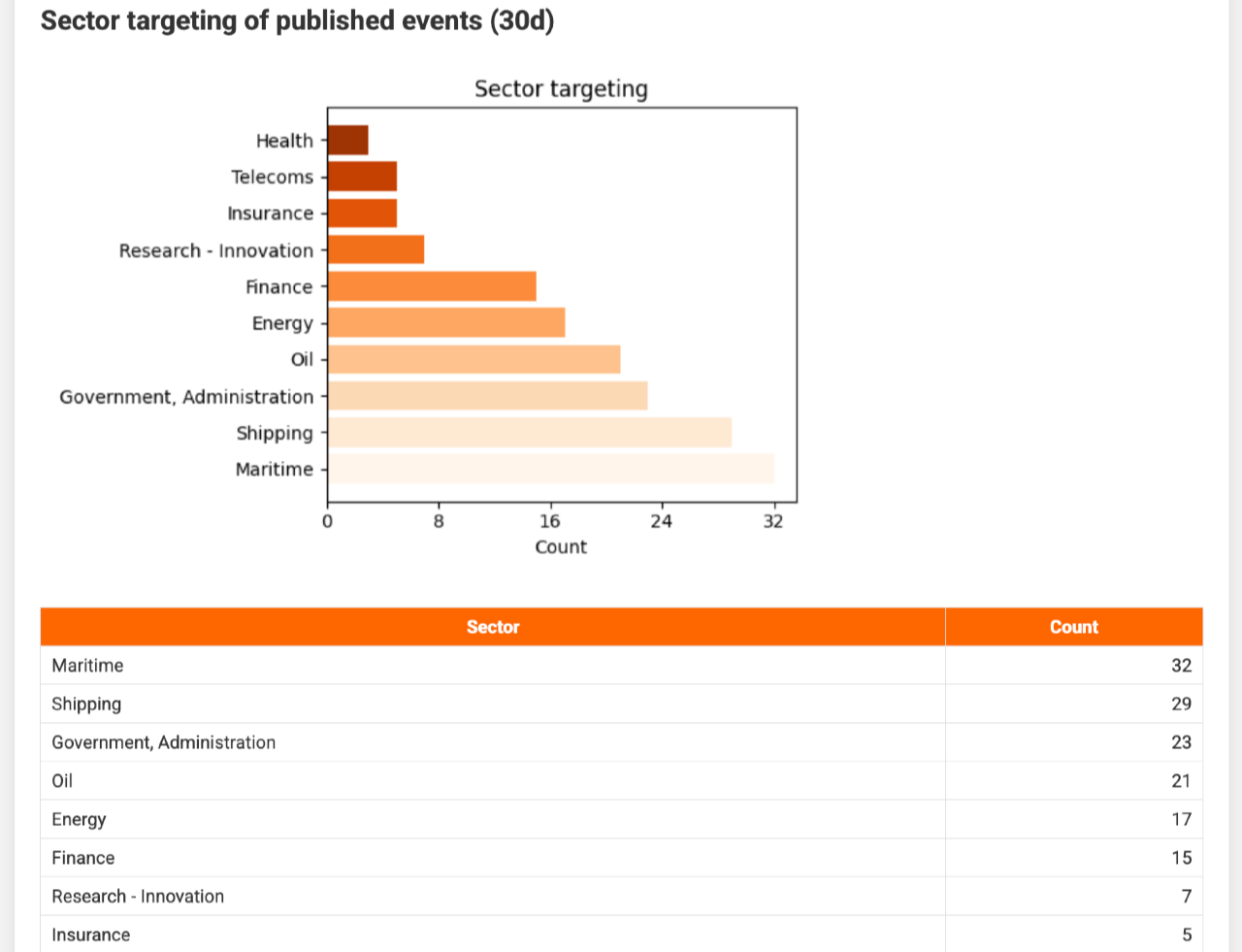

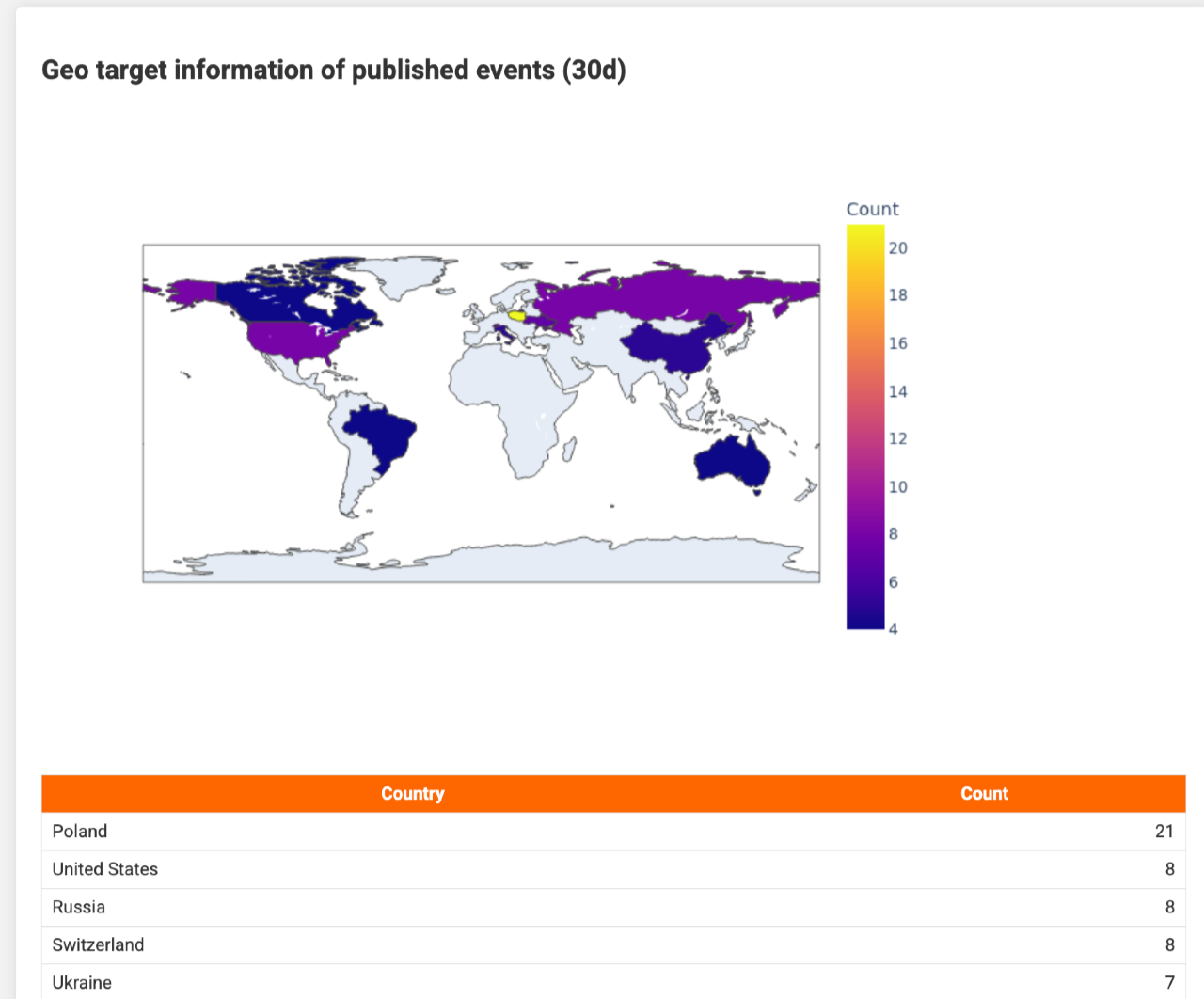

Two charts then show which countries or regions were targeted and which sectors were attacked, using galaxy tags set in filter_geo and filter_sector.

docs/misp-reporting-summary-6.png

docs/misp-reporting-summary-7.png

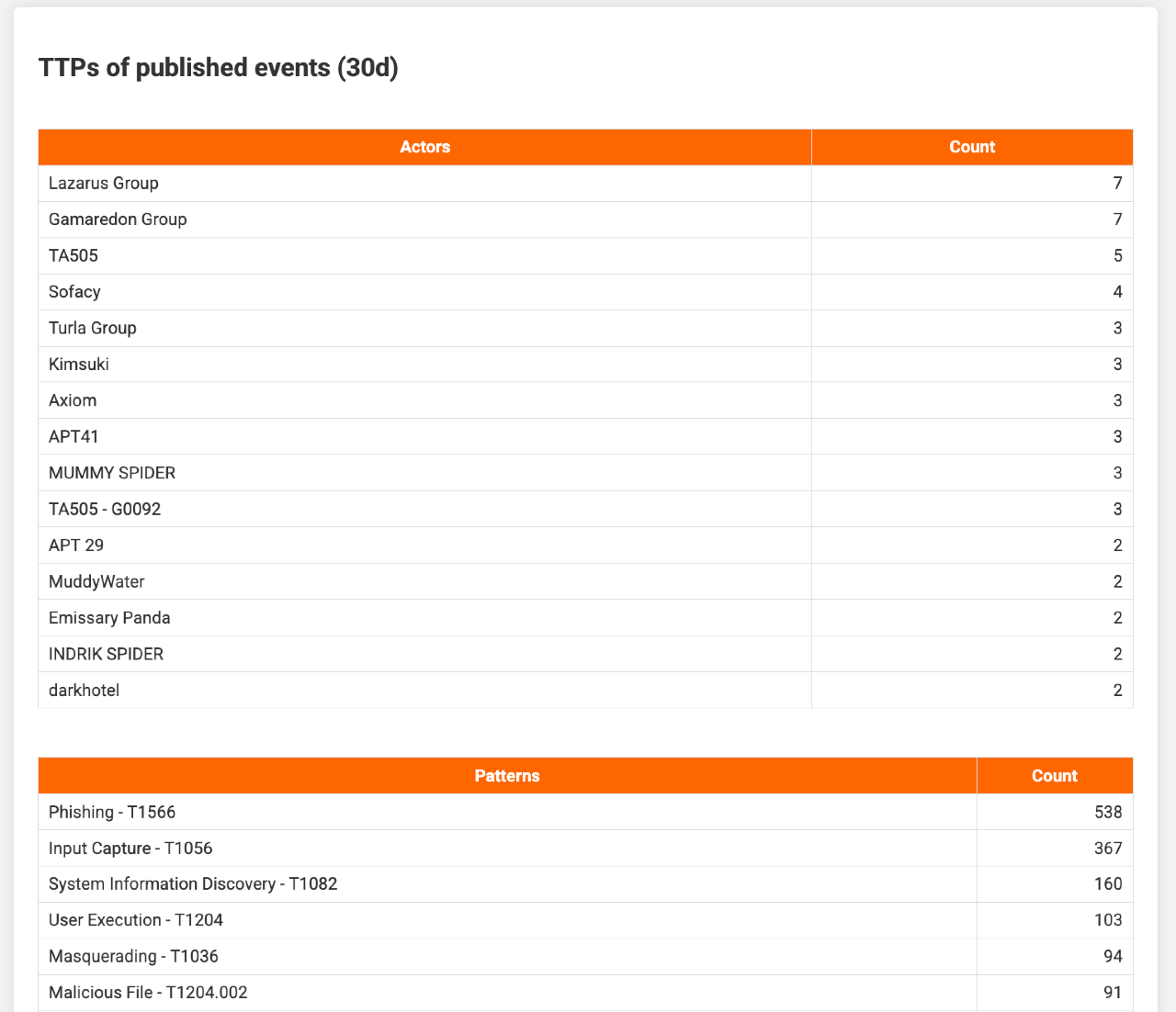

Similarly, threat actors (filter_ttp_actors) and attack techniques (filter_ttp_pattern) are listed.

docs/misp-reporting-summary-8.png

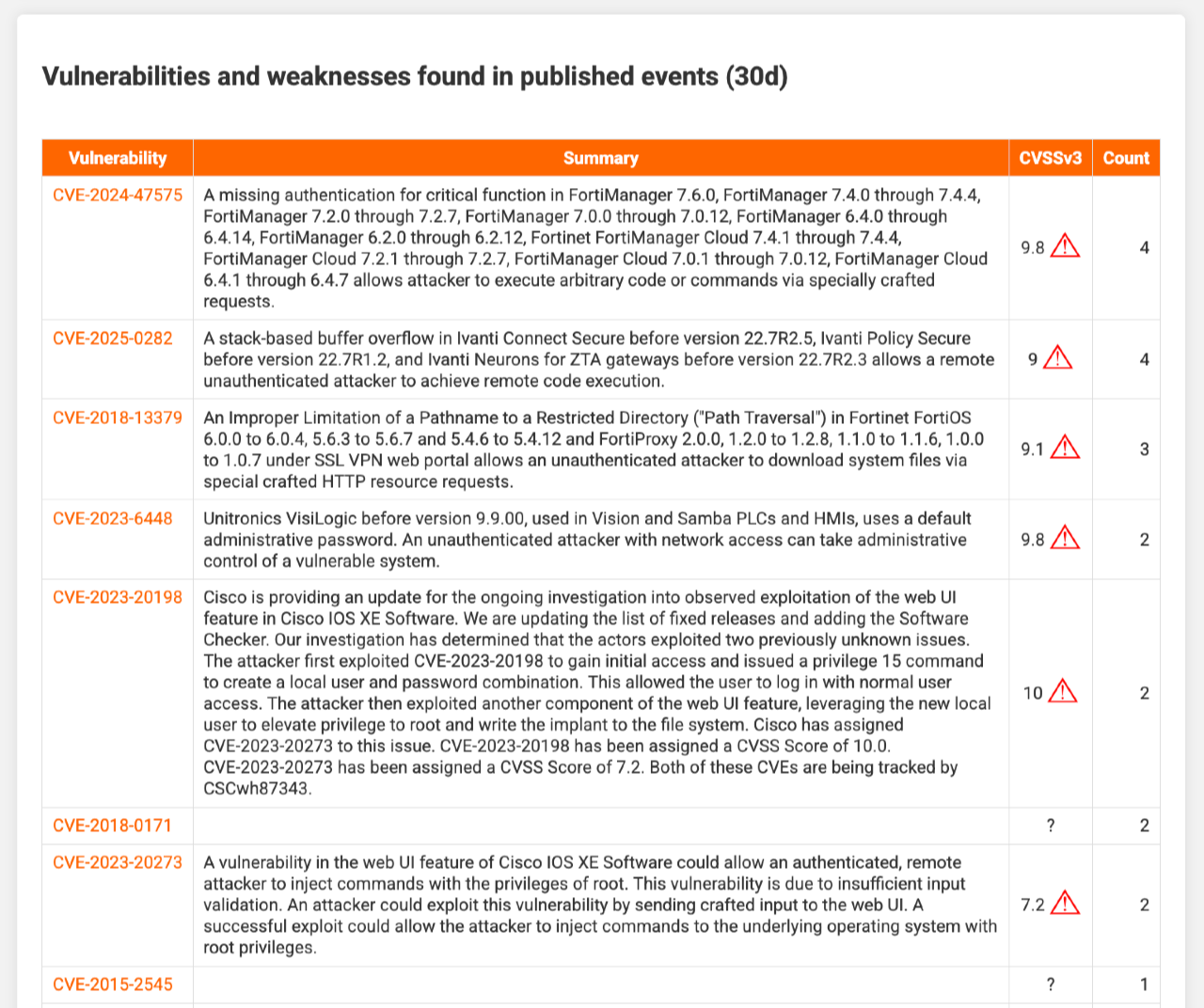

Finally, the report summarises all CVEs referenced in events. Additional details, such as descriptions and CVSS scores, are retrieved from cvepremium.circl.lu (cve_url). CVEs above the threshold set in reporting_cve_highlight are emphasised.

docs/misp-reporting-summary-9.png

Curation report

The curation report shows how many threat events have been curated—either automatically or manually. A typical curation process checks events against the MISP warninglists and the CIRCL Hashlookup service; matches lead to indicators being marked non‑actionable (the to_ids flag is cleared). Curation may also enrich events with contextual data. In this setup, curated events are placed in the local workflow state complete; uncurated events remain incomplete.

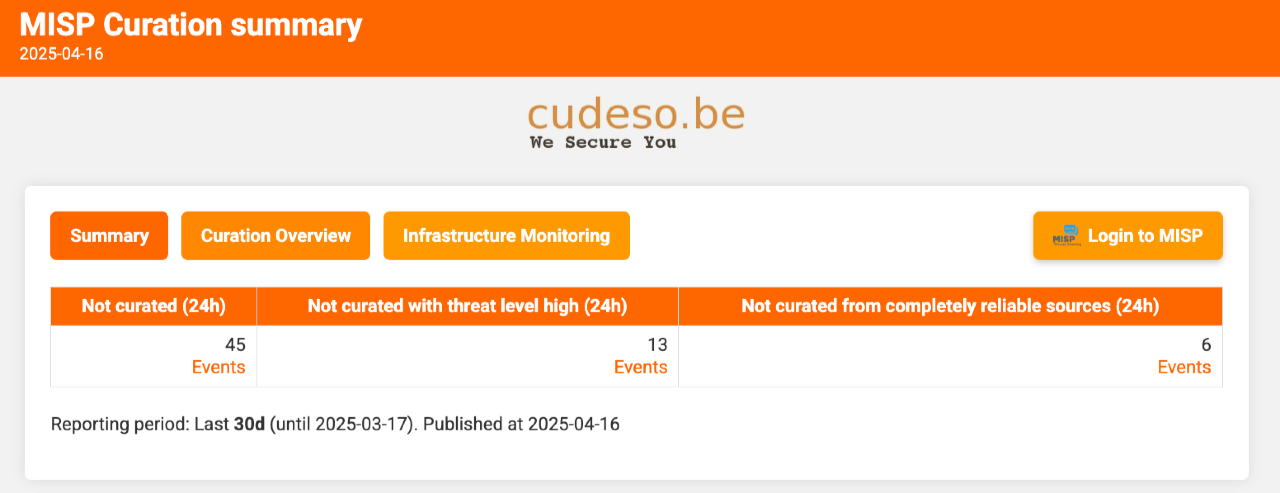

The opening section lists how many events are awaiting curation, how many high‑threat events are waiting, and how many events from completely reliable sources are pending. Links take you straight to each set in MISP.

docs/misp-reporting-curation-1.png

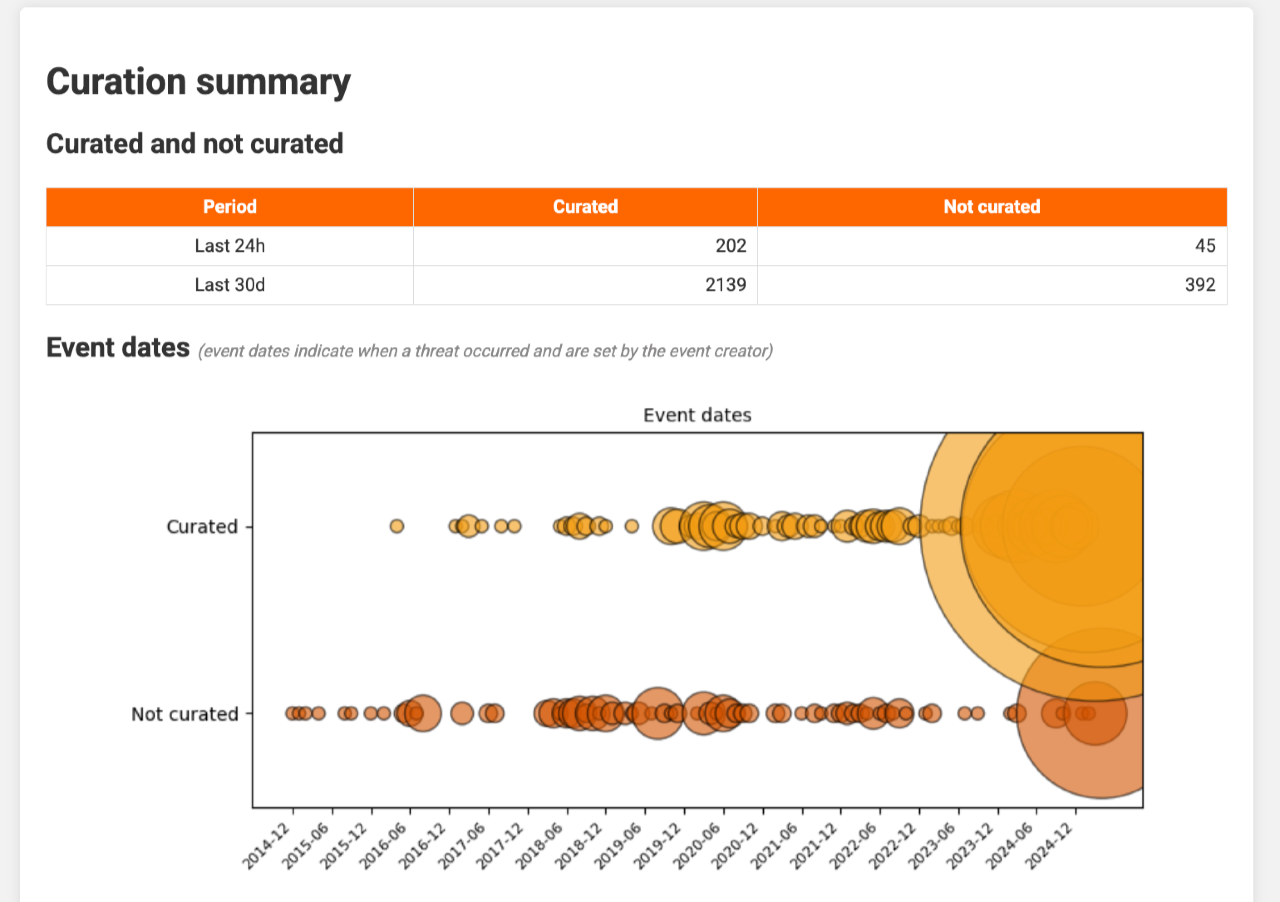

Next, the report plots the dates of curated and uncurated events so you can see whether outstanding items are recent or historic.

docs/misp-reporting-curation-2.png

You can also view the volume of curated versus uncurated events per organisation.

docs/misp-reporting-curation-3.png

Finally, a table lists the individual events, highlighting those with high threat levels and those from fully reliable sources. This helps you prioritise urgent reviews. For automation ideas see the MISP playbook Curate threat events.

docs/misp-reporting-curation-4.png

Statistics file

Besides the HTML reports, misp‑reporting creates a JSON file, statistics.json, suitable for other tools:

{
    "misp_server": "https://misp",
    "report_date": "2025-04-16",
    "statistics": "{'event_count': 138584, 'attribute_count': 6877874, 'user_count': 2, 'org_count': 1124, 'local_org_count': 2}",
    "today_statistics": "{'today_event_count': 36598, 'today_attribute_count': 36598, 'today_attribute_ids_count': 29370}",
    "today_statistics_attributes": "{'hashes': 4017, 'url': 295, 'domain': 22422, 'Other': 607, 'email': 22, 'network': 2007}"
}

Graphics

All images are stored in the report directory and may be reused elsewhere:


Prevent unauthenticated access

By default, everything under /var/www/MISP/app/webroot/misp-reporting is publicly accessible. To restrict access, modify MISP core as explained in github.com/MISP/MISP/issues/10272 by editing /var/www/MISP/app/AttributesController.php.

Configuration options

The configuration is handled in config.py.

Set the log file (logfile), logger name (logname), and whether to log uncurated events (log_incomplete):

config = {
        "logfile": "/var/www/MISP/app/tmp/logs/misp-reporting.log",
        "logname": "misp-reporting",
        "log_incomplete": False,

Define the length of the reporting period (reporting_period), how many periods to display (reporting_trending_count), and any event filter (reporting_filter). reporting_eventdetails_onlykeyorgs determines whether to print event details later (see print_event_details). reporting_filter_timestamp lets you trend on either timestamp or published dates.

        "reporting_period": "30d",
        "reporting_filter": None,
        "reporting_eventdetails_onlykeyorgs": True,
        "reporting_trending_count": 6,
        "reporting_filter_attribute_type_ids": True,
        "reporting_filter_timestamp": "published",
        "reporting_filter_published": True,

        "print_event_details": False,

MISP connection settings follow. Provide the instance URL, whether to verify the certificate, and an API key. misp_page_size controls pagination. cve_url and vulnerability_lookup_url supply vulnerability information. reporting_cve_highlight sets the CVSS threshold for highlighting CVEs.

        "misp_url": "",
        "misp_verifycert": False,
        "misp_key": "",
        "misp_page_size": 200,
        "cve_url": "https://cvepremium.circl.lu/api/cve/",
        "vulnerability_lookup_url": "https://vulnerability.circl.lu/vuln/",

        "reporting_cve_highlight": 7,

Filter options:

        "filter_sector": "misp-galaxy:sector",
        "filter_sector_count": 10,
        "filter_geo":  "misp-galaxy:target-information",
        "filter_geo_count": 10,
        "filter_ttp_actors": ["misp-galaxy:threat-actor", "misp-galaxy:mitre-intrusion-set"],
        "filter_ttp_actors_count": 15,
        "filter_ttp_pattern": ["misp-galaxy:mitre-attack-pattern"],
        "filter_ttp_pattern_count": 15,

Attribute groupings:

        "attribute_summary": {"network": ["ip-src", "ip-dst", "ip-src|port", "ip-dst|port"],
                              "hashes": ["sha1", "sha256", "md5", "filename|sha256", "filename|sha1", "filename|sha256", "filename|md5", "filename|sha256"],
                              "domain": ["hostname", "domain", "domain|ip"],
                              "url": ["url"],
                              "email": ["email", "email-src", "email-dst"],
                              "vulnerability": ["vulnerability", "cpe", "weakness"]},
        "attribute_other": "Other",

Key organisations and their logos:

        "key_organisations": {"5cf66e53-b5f8-43e7-be9a-49880a3b4631": {"logo": "5cf66e53-b5f8-43e7-be9a-49880a3b4631.png"},
                              "55f6ea5e-2c60-40e5-964f-47a8950d210f": {"logo": "55f6ea5e-2c60-40e5-964f-47a8950d210f.png"},
                              "56a64d7a-63dc-4471-bce9-4accc25ed029": {"logo": "56a64d7a-63dc-4471-bce9-4accc25ed029.png"},
                              "56e02aba-9dd0-49ea-bd95-026e55fec118": {"logo": "56e02aba-9dd0-49ea-bd95-026e55fec118.png"},
                              "5677fc72-f46c-49f3-b5f3-7245ff32448e": {"logo": "5677fc72-f46c-49f3-b5f3-7245ff32448e.png"}},

Installation paths, templates, and appearance:

        "output_assets": "assets",
        "output_dir": "/var/www/MISP/app/webroot/misp-reporting",
        "install_dir": "/var/www/MISP/misp-custom/misp-reporting",
        "template_css": "templates/style.css",
        "template_html": "templates/template.html",
        "template_curation_html": "templates/template_curation.html",
        "template_infrastructure_html": "templates/template_infrastructure.html",
        "template_contributors_html": "templates/template_contributors.html",
        "noimage_path": "no-image-32.png",
        "logo": "assets/cudeso.png",

        "distribution": ["Your organisation", "This community", "Connected communities", "All communities", "Sharing group"],
        "analysis": ["Initial", "Ongoing", "Completed"],
        "threatlevel_key_mapping": {'1': 'High', '2': 'Medium', '3': 'Low', '4': 'Undefined'},
        "tlp_ignore_graph": ['tlp:unclear', 'tlp:ex:chr', 'tlp:amber+strict'],
        "workflow_complete": "workflow:state=\"complete\"",
        "workflow_incomplete": "workflow:state=\"incomplete\"",
}
